Stainless Steel Bar 6

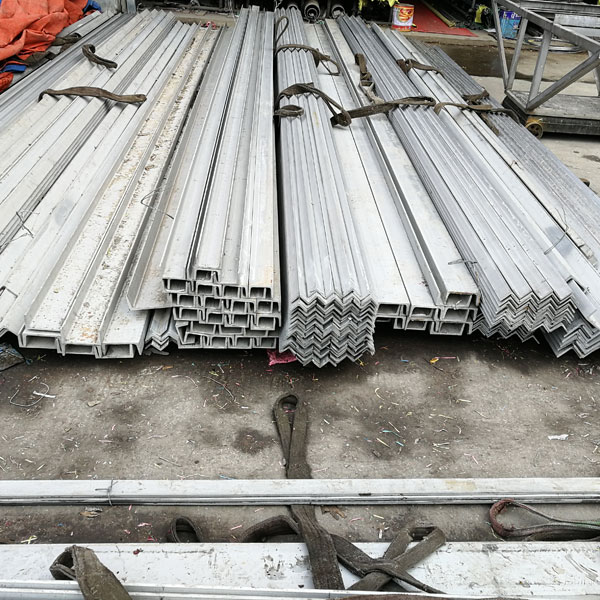

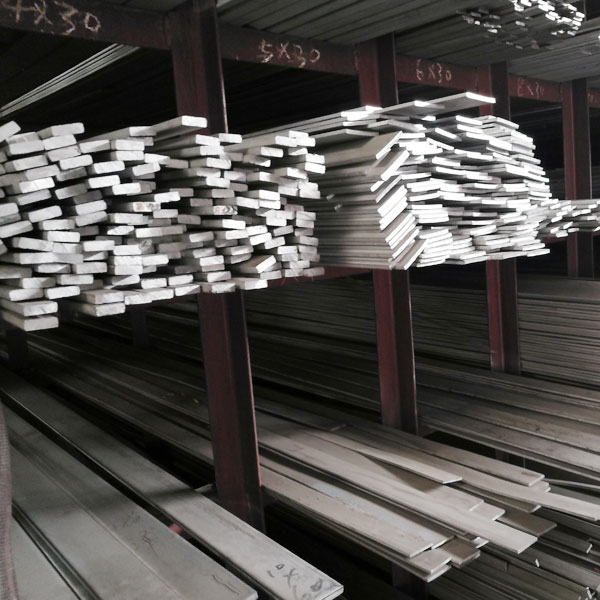

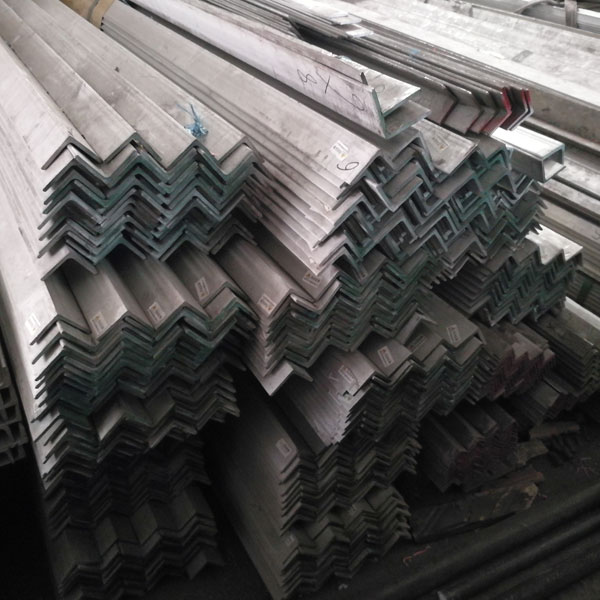

Our product incude Round bar/Square Bar/Angle Bar/Flat Bar
301,304,304L,TP304,TP304L,309S,310S,316,316L,316Ti,TP316,TP316L,317,317L,321,347,347H,TP347,TP347H

Send Email to us

PRODUCTS Description

Product name	Stainless steel Round bar/Square Bar/Angle Bar/Flat Bar
Material	201,202	301,304,304L,TP304,TP304L,309S 310S,316,316L,316Ti,TP316,TP316L, 317,317L,321,347,347H,TP347,TP347H	405,409,410,410s,420,430
Standard	ASTM,JIS,DIN,EN
	Round Bar	3mm-500mm
	Square Bar	22mm-500500mm
	Angle Bar	0.5mm4mm4mm-20mm400mm400mm
	Flat Bar	Thickness	0.3-200mm
		Width	1-2500mm
	Length	2m,5.8m,6m,or random length
Surface	Pickling,Bright,Polished
Application	1.Construction 2.Architecture 3.Hardware Vehicles 4.Machinery Components 5.Oil and Chemical Industry 6.Food and Agricultural 7.Power Station etc

Crade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0.15	≤0.75	5.5-7.5	≤0.06	≤0.03	3.50-5.50	16.0-18.0	-
202	≤0.15	≤1.0	7.5-10.0	≤0.06	≤0.03	4.0-6.0	17.0-19.0	-
301	≤0.15	≤1.0	≤2.0	≤0.06	≤0.03	6.0-8.0	16.0-18.0	-
302	≤0.15	≤1.0	≤2.0	≤0.06	≤0.03	8.0-10.0	17.0-19.0	-
304	≤0.08	≤1.0	≤2.0	≤0.06	≤0.03	8.0-11.0	18.0-20.0	-
304L	≤0.08	≤1.0	≤2.0	≤0.06	≤0.03	9.0-12.0	18.0-20.0	-
309S	≤0.08	≤1.0	≤2.0	≤0.06	≤0.03	12.0-15.0	22.0-24.0	-
310S	≤0.08	≤1.5	≤2.0	≤0.06	≤0.03	10.0-14.0	24.0-26.0	-
316	≤0.08	≤1.0	≤2.0	≤0.06	≤0.03	10.0-14.0	16.0-18.0	2.0-3.0
316L	≤0.08	≤1.0	≤2.0	≤0.06	≤0.03	11.0-14.0	17.0-19.0	2.0-3.0
321	≤0.08	≤1.0	≤2.0	≤0.035	≤0.03	9.0-12.0	17.0-19.0	-
630(17-4PH)	≤0.07	≤1.00	≤1.00	≤0.035	≤0.030	3.00-5.00	15.5-17.5	-
631	≤0.09	≤1.00	≤1.00	≤0.030	≤0.035	6.50-7.75	16.00-18.00	-
904L	≤2.0	≤0.045	≤1.0	≤0.035	-	23.0-28.0	19.00-23.0	4.0-5.0
2205	≤0.03	≤1.0	≤0.80	≤0.03	≤0.02	4.5-6.5	22.0-23.0	3.0-3.5
2507	≤0.03	≤0.80	≤1.5	≤0.035	≤0.02	6.0-8.0	24.0-26.0	3.0-5.0
2520	≤0.08	≤1.5	≤2.0	≤0.035	≤0.03	0.19-0.22	0.24-26.0	-
410	≤0.15	≤1.0	≤1.0	≤0.035	≤0.03	-	11.5-13.5	-
430	≤0.12	≤0.75	≤1.0	≤0.04	≤0.03	≤0.06	16.0-18.0	-
